Laser Marking Solution

Flexible Laser marking cell –ML-00/50

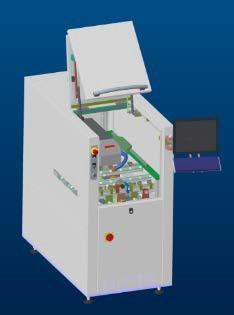

Laser marking cell with embedded board inverter ML-00
The in line laser marking cell Fenix ML-00 is used for engraving, directly onto
electronic PCBs or the final product cases, barcode, 2d code or images, symbols
and editing.
Coverage of working surfaces ranges from 257mm L x 350mm W (standard) up to
450mm L x 350mm W (optional).

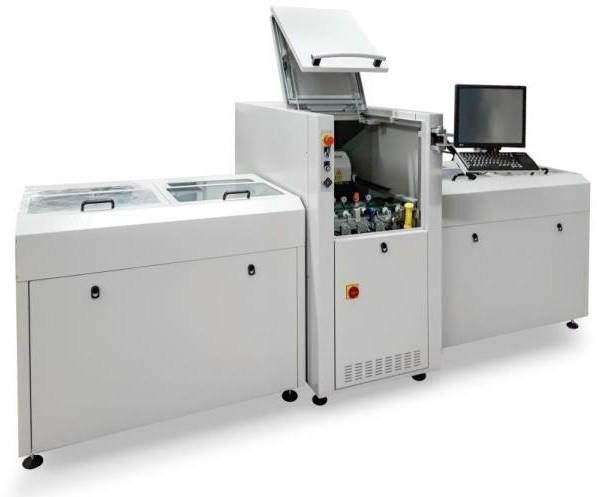

Laser marking cell ML-50
The in line laser marking cell Fenix ML-50 is used for engraving, directly onto electronic PCBs
or the final product cases, barcode, 2d code or images, symbols and editing.
The laser and board are moved by servo axis allowing coverage of working surfaces from
450mm L x 500mmW (standard version) up to 1500mm L x 500mm W.

Technical Caracteristics
- Line length –750 mm
- In –Out SMEMA Interface
- Mechanical board alignment
- ESD Safety Design
- CE Compliance
- Flat Belt (Width 3 mm)
- Power Supply -230Vac 50/Hz 16A
- Conveyor Speed 6 m/min up to 18 m/min
- Automatic Width Adjustment
- Weight 350 Kg


PCBs specification ML-00
- Max/Min PCB width 500mm/100 mm
- Max /Min PCB length 370mm/100 mm


ML-50
- Max/Min PCB width 500mm/100 mm
- Max /Min PCB length 1500mm/100 mm

Options
- Long Board accessory (ML50)
- 2d Reader for reading verification or traceability

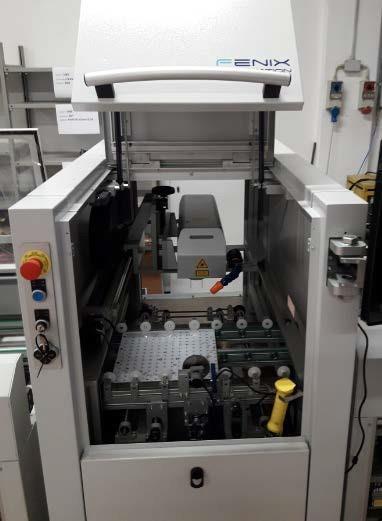

Laser marking
Laser long board
