Fine Cleaning covers cleaning processes for production tools that immediately affect the value-added chain. Basic Fine Cleaning includes screens, stencils and PumpPrints as well as misprinted boards.

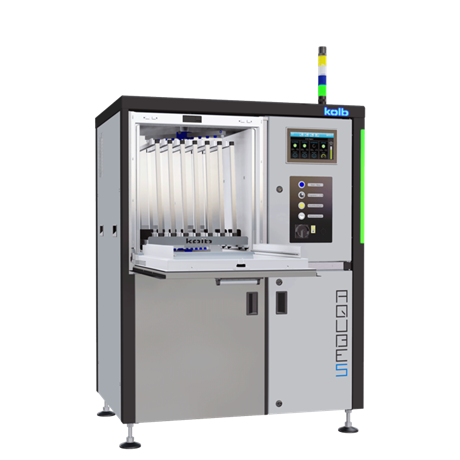

AQUBE® MH5
Fully automatic tools cleaning system

The new kolb AQUBE® series offer next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-physically ready for the smart factory (SF ready).

AQUBE® MH5 is a "allround" cleaning system for tools and maintenance cleaning fulfilling almost every requirement such as the cleaning of solder carriers / masks, ESD boxes, magazines, palettes, machinery parts and other small parts from flux residues, oil, dust and grease.

AQUBE® MH5 is a German engineered and manufactured machine with ClosedLoop water reprocessing and a two-tank and up to three circuits configuration which ensures short cycle times and makes this system the perfect economic choice for tools cleaning in electronics production.




Highlights

  • Two tank system with triple circuit function
  • Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 3step (optional up to 5Step): cleaning, rinsing (tap water), VMH®-Turbo evaporative drying
  • Horizontal PTFE mounted rotor system with asynchronous spray rotors for thorough wetting (no blind spots)
  • Horizontal cleaning of stencils prossible with special drawer option
  • ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
  • Process and service intervals PLC controlled
  • Event issuing and software control via touch screen
  • EDGELESS Design and VARIccess® maintenance access: maximum capacity on a very small footprint
  • HT version for high temperature cleaning and rinsing up to 80 °C available

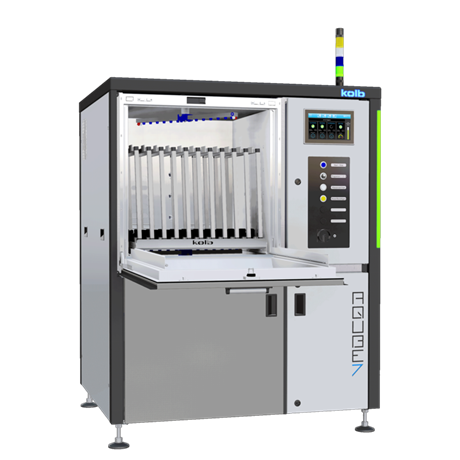

AQUBE® MH7
Fully automatic "allround" tools cleaning system

The new kolb AQUBE® series offer next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-physically ready for the smart factory (SF ready).

AQUBE® MH7 is a "allround" cleaning system for tools and maintenance cleaning with an XL process chamber. It fulfills almost every requirement such as the cleaning of solder carriers / masks, ESD boxes, magazines, palettes, machinery parts and other small parts from flux residues, oil, dust and grease.

AQUBE® MH7 is a German engineered and manufactured machine with ClosedLoop water reprocessing and a two-tank and up to three circuits configuration which ensures short cycle times and makes this system the perfect economic choice for tools cleaning in electronics production.




Highlights

  • Two tank system with triple circuit function
  • Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 3step (optional up to 5Step): cleaning, rinsing (tap water), VMH®-Turbo evaporative drying
  • Horizontal PTFE mounted rotor system with asynchronous spray rotors for thorough wetting (no blind spots)
  • Horizontal cleaning of stencils prossible with special drawer option
  • ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
  • Process and service intervals PLC controlled
  • Event issuing and software control via touch screen
  • EDGELESS Design and VARIccess® maintenance access: maximum capacity on a very small footprint
  • HT version for high temperature cleaning and rinsing up to 80 °C available

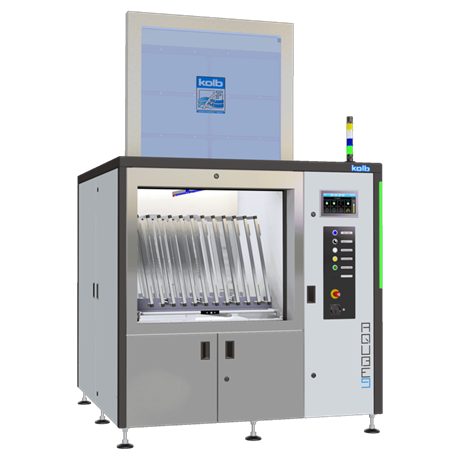

AQUBE® MH9
XXL "all round" electronic manufacturing tools cleaning system

The new kolb AQUBE® series offer next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-physically ready for the smart factory (SF ready).

AQUBE® MH9 is a XXL “all round” system for tools and maintenance cleaning with a super large process chamber. It fulfillsalmost every requirement such as the cleaning of solder carriers / masks, ESD boxes, magazines, palettes, machinery parts and other small parts from flux residues, oil dust and grease.

AQUBE® MH9 is a German engineered and manufactured machine with ClosedLoop water reprocessing and a two-tank and up to three circuits configuration which ensures short cycle times and makes this system the perfect economic choice for tools cleaning in electronics production.

AQUBE® MH9 systems, equipped with loading and unloading automats can be coupled to highly efficient super mass plants.




Highlights

  • Two tank system with triple circuit function
  • Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 3step (optional up to 5Step): cleaning, rinsing (tap water), drying with VMH®-Turbo evaporative drying
  • Horizontal PTFE mounted rotor system with asynchronous spray rotors for thorough wetting (no blind spots)
  • ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
  • Process and service intervals PLC controlled
  • Event issuing and software control via touch screen
  • EDGELESS Design and VARIccess® maintenance access: maximum capacity on a very small footprint
  • HT version for high temperature cleaning and rinsing up to 80 °C available

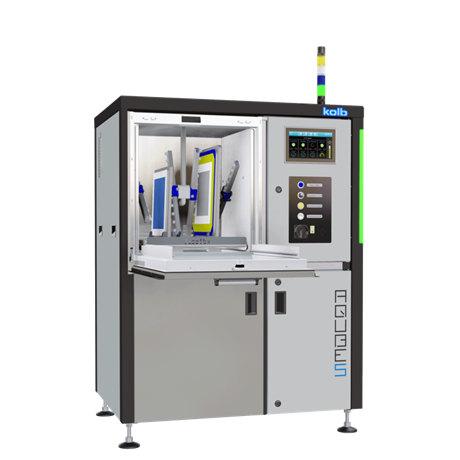

AQUBE® MV5 TWIN
Cleaning system for two screens, stencils or PumpPrints

The new kolb AQUBE® series offer next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-physically ready for the smart factory (SF ready).

AQUBE®MV5 TWIN is a fully automatic system for reliable precision cleaning of two screens, stencils, PumpPrints or other flat products in one cycle. It removes quickly and thoroughly contaminations such as SMD-paste, SMD-adhesive, flux residues and stabilizer materials.

AQUBE®MV5 TWIN is a German engineered and manufactured machine with ClosedLoop water reprocessing and a two-tank and two separate circuits configuration which ensures short cycle times and makes this system the perfect economic choice for the cleaning of stencils.

The system is ideally suitable for larger daily amounts of cleaning goods. For smaller quantities or fewer daily cleaning cycles, the kolb PSE 300 stencil mono-cleaning systems are often a more efficient solution.




Highlights

  • Two tank system with two separate circuits
  • Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 4step process: cleaning, MediumWipe®, rinsing, CWA® supercharger compression drying
  • Vertical PTFE mounted rotor system with four asynchronous spray rotors for thorough wetting (no blind spots)
  • Short cycle times (approx. 7 min / normal contamination) due to placing the cleaning goods close to the spray rotors
  • Water free operation possible with a suitable cleaning / rinsing detergent
  • Process and service intervals PLC controlled
  • Event issuing and software control via touch screen
  • Safe installation close to the production line / screen printer possible; no special protection required
  • EDGELESS Design and VARIccess® maintenance access: maximum capacity on a very small footprint

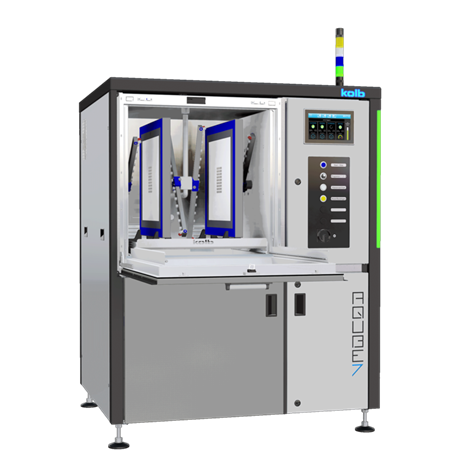

AQUBE® MV7 TWIN
Cleaning system for two sreens, stencils or PumpPrints

The new kolb AQUBE® series offer next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-physically ready for the smart factory (SF ready).

AQUBE®MV7 TWIN is a fully automatic XL system for reliable precision cleaning of two screens, stencils, PumpPrints or other flat products in one cycle. It removes quickly and thoroughly contaminations such as SMD-paste, SMD-adhesive, flux residues and stabilizer materials.

AQUBE®MV7 TWIN is a German engineered and manufactured machine with ClosedLoop water reprocessing and a two-tank and two separate circuits configuration which ensures short cycle times and makes this system the perfect economic choice for the cleaning of stencils.

The system is ideally suitable for larger daily amounts of cleaning goods. For smaller quantities or fewer daily cleaning cycles, the kolb PSE 300 stencil mono-cleaning systems are often an even more efficient solution.




Highlights

  • Two tank system with two separate circuits
  • Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 4step process: cleaning, MediumWipe®, rinsing, CWA® supercharger compression drying
  • Vertical PTFE mounted rotor system with four asynchronous spray rotors for thorough wetting (no blind spots)
  • Short cycle times (approx. 5 min / normal contamination) due to placing the cleaning goods close to the spray rotors
  • Water free operation possible with a suitable cleaning / rinsing detergent
  • Process and service intervals PLC controlled
  • Event issuing and software control via touch screen
  • Safe installation close to the production line / screen printer possible; no special protection required
  • EDGELESS Design and VARIccess® maintenance access: maximum capacity on a very small footprint

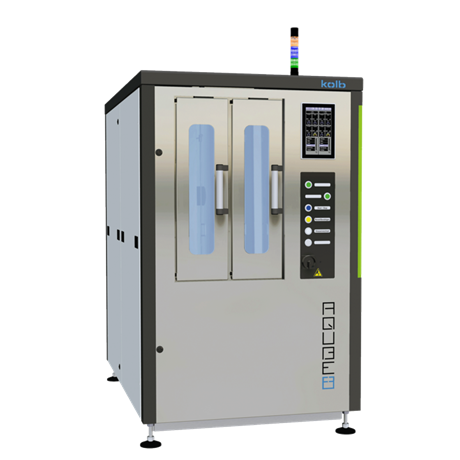

AQUBE® MV8 sTWIN
Parallel or sequential cleaning of two stencils

The new kolb AQUBE® systems are next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and ready for the smart factory (SF ready).

AQUBE® MV8 sTWIN is a high-end dual chamber PowerSpray® system for the thorough parallel or squential cleaning of two stencils, which provides excellent cleaning results in a short cycle time.

AQUBE® MV8 sTWIN cleans two stencils up to 900 x 800 mm (35 "x 32"), making it especially suitable for large-scale manufacturing. While common systems with double capacity have to wait until two stencils are ready for cleaning or until the running cleaning cycle has ended, AQUBE® MV8 sTWIN can start cleaning one stencil immediately and a second one later (sequential) or in parallel.




Highlights

  • Two full-fledged process chambers for parallel or sequential cleaning
  • Two tank system with four separate circuits
  • Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 4step process: cleaning, MediumWipe®, rinsing (tap water), drying with warm air
  • Vertical fourfold rotor system with asynchronous spray rotors for thorough wetting (no blind spots)
  • XPower magnetic coupled pumping system
  • Short cycle time (approx. 7 min.) depending on used detergent and contamination
  • ClosedLoop reprocessing of cleaning and rinsing fluids as standard feature
  • Water-free operation possible: Instead of water the system can use a suitable cleaning / rinsing detergent for rinsing
  • Process and service intervals PLC controlled
  • Event issuing and software control via high resolution 7" display with capacitive multi-touch
  • PLC data recording and importing by scanner possible
  • EDGELESS Design and VARIccess® maintenance access: maximum capacity on a very small footprint

AQUBE® MV9 QUAD
Cleaning system for four screens, stencils or PumpPrints

The new kolb AQUBE® series offer next-generation cleaning systems - even more efficient, even more compact, easy to handle and maintain, pre-equipped for extended water management and cyber-physically ready for the smart factory (SF ready).

AQUBE® MV9 QUAD is the only batch system worldwide for process safe fine cleaning of four screens, stencils or PumpPrints in one cleaning cycle. It removes contaminations such as SMD-paste, SMD-adhesive and stabilizer materials. quickly and thoroughly. Ideally suited for large-scale productions with several stencil printers.

This system with its super-large process chamber can supply up to four printers every quarter hour with freshly cleaned and dried stencils or screens.

AQUBE® MV9 QUAD is a German engineered and manufactured machine with ClosedLoop water reprocessing and a two-tank and two separate circuits configuration which ensures short cycle times and makes this system the perfect economic choice for the cleaning of stencils.

The system is the perfectly suited for larger daily amounts of cleaning goods. For smaller quantities or fewer daily cleaning cycles, the kolb PSE 300 stencil mono-cleaning systems are often an even more efficient solution.




Highlights

  • Two tank system with two separate circuits
  • Digital Factory ready: DNAccess, remote control, traceability (PLC data scanning and memorizing)
  • Fully automatic 4step process: cleaning, MediumWipe®, rinsing, CWA® supercharger compression drying
  • Vertical PTFE mounted rotor system with eight asynchronous spray rotors for thorough wetting (no blind spots)
  • Short cycle times (approx. 4 min relative cleaning time per stencil / normal contamination) due to placing the cleaning goods close to the spray rotors
  • Water free operation possible with a suitable cleaning / rinsing detergent
  • Process and service intervals PLC controlled
  • Event issuing and software control via touch screen
  • Safe installation close to the production line / screen printer possible; no special protection required
  • EDGELESS Design and VARIccess® maintenance access: maximum capacity on a very small footprint

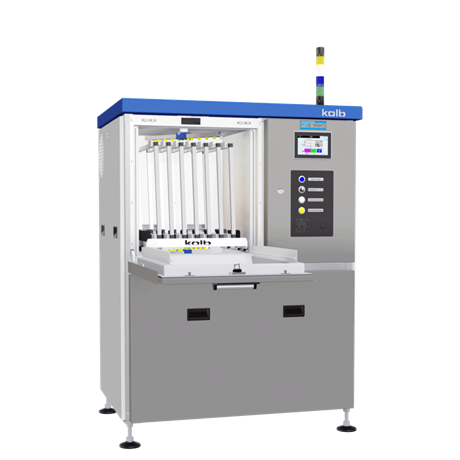

PSE M series

Two stencils, up to 11 carriers or machinery parts, boxes in one cleaning cycle

The systems of the PSE M series offer multi option economy systems for almost every requirement of tools cleaning such as the cleaning of stencils, solder carriers / masks, ESD boxes, magazines, pallets, machinery parts and other small parts from paste, adhesive, flux, oil dust and grease.

The two tank combi systems with triple circuit function and a fully automatic 3 or 4step process (cleaning, MediumWipe®, rinsing, drying) and ClosedLoop water processing are very compact, energy saving and well equipped in their basic version.

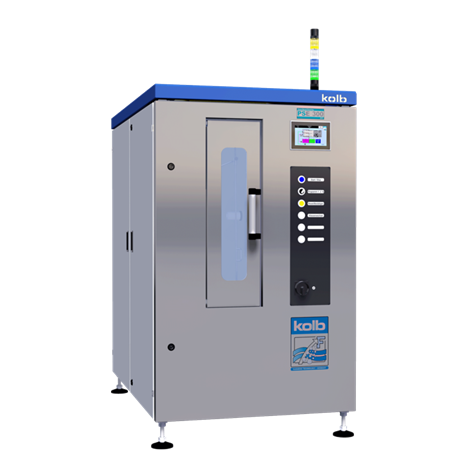

PSE 300 series

Super-compact cleaning economy systems for screens and stencils

The kolb PSE economy line is a quality series of advanced cleaning systems, which focuses on all essential criteria for a qualified cleaning process and therefore stands for attractive purchase prices.

The systems of the kolb PSE economy series offer extremely compact machines with PowerSpray® technology for the cleaning of screens, stencils and misprints from SMD paste, SMD adhesive, flux, oil, dust, grease etc.

The systems are perfectly applicable for small and medium sized companies and smaller quantities as well as for mass production plants where a cleaning system is placed to each printer.
